MISTRAL SERIES / Multi Zone

MISTRAL SERIES / Multi Zone

DESCRIPTION

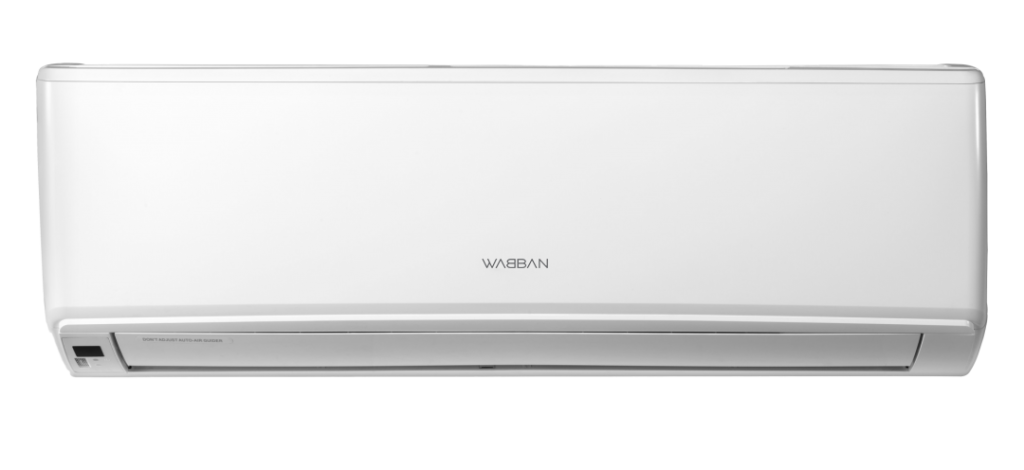

Reliable, efficient, sophisticated and powerful are the words that best describe the Mistral series. The Mistral series is a very quiet, wifi capable, inverter driven mini-split using R410A refrigerant that is engineered to provide heat even at -20° C. The subtle indoor unit panel will blend in any type of room. This system is also available for light commercial applications with a 30,000BTU and even a 36,000BTU capacity. If you are looking for technology, comfort, reliability and an efficient auxiliary source of heating the Mistral series is for you. The Mistral series qualifies for rebates with almost every utility company in North America.

18/23 HSPR/SEER    9K/36K BTU CAPACITY

FEATURES

• HSPF: 10
• Wifi capable
• LED display
• Heating up to -13F / -25C
• Automatic mode
• Optional wall thermostat
• Also available in Multi-Zone
• Rebates available with every utility company in North America

• Low voltage start-up to optimize your energy savings
• Smart de-frost to maximise comfort and efficiencies
• Pan-heater designed for North American winters
• Crank case heater to protect the compressor in low outdoor temperatures
• Optional Wifi module
• Easy to clean filters to live in an healthy environment

• Vertical auto swing to boost your comfort and accelerate heating and cooling modes
• Sleep mode: ever woke up in a room that was too cold? You won’t with our sleep mode
• Lock functions to prevent the kids from changing set points or modes
• Self diagnostic to facilitate servicing your system
• Timer

SPECIFICATION

MODEL BB09HQ2A3D BB12HQ2A3D BB24HQ2A3D BB24HM1C2D BB30HQ2A3D BB36HQ2A3D
Power Supply 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph
Rated Current Cooling A 5.8 6.0 10.4 14.5 17 20
Rated Current Heating A 6.0 6.3 10.4 14.5 17.5 20
System Performance
Dehumidification pt/h 0.8 1.4 1.8 23 3 3.5
Cooling Capacity (Min-Max) Btu/h 9,000 (3,100 – 9,600) 12,000 (3,100 – 13,000) 18,000 (6,800 – 20,000) 22,000 (8,820 – 27,000) 18,000 (9,490 – 30,030) 22,000 (7,400 – 36,000)
Heating Capacity (Min-Max) Btu/h 11,000 (1,911 – 12,000) 13,000 (2,400 – 14,000) 19,000 (7,340 – 23,500) 23,000 (8,820 – 30,710) 28,400 (10,000 – 32,990) 34,600 (14,980 – 36,000)
SEER/EER 23 / 14.29 22 / 12.50 20 / 12.50 20 / 12.50 18 / 10.40 18 / 8.20
HSPF/COP 10.5 / 3.16 11.0 / 3.46/td> 10.0 / 3.35 10 / 3.37 9.0 / 3.0 9 / 2.7
Indoor Unit BB09HQ2A3D-I BB12HQ2A3D-I BB24HQ2A3D-I BB24HM1C2D-I BB30HQ2A3D-I BB36HQ2A3D-I
Airflow CFM 171 / 377 171 / 400 335 / 559 530 / 706 412 / 706 412 / 706
Sound Pressure Level dB(A) 29 / 43 29 / 45 39 / 47 36 / 48 37 / 51 37 / 54
Unit Dimension inch 33.4 x 11.4 x 8.2 33.4 x 11.4 x 8.2 38.2 x 11.8 x 8.8 42.4 x 12.8 x 9.7 53.1 x 12.8 x 10 53.1 x 12.8 x 10
Net/Gross Weight lbs 22.1 / 26.5 22.1 / 26.5 27.6 / 34.2 34.2 / 41.9 41.9 / 51.8 41.9 / 51.8
Outdoor Units BB09HQ2A3D-O BB12HQ2A3D-O BB24HQ2A3D-O BB24HM1C2D-O BB30HQ2A3D-O BB36HQ2A3D-O
Compressor Type SWING SWING ROTARY ROTARY ROTARY ROTARY
Sound Pressure Level dB(A) 53 54 55 59 62 65
Unit Dimension inch 33.4 x 21.3 x 12.6 33.4 x 23.6 x 12.6 37.6 x 27.6 x 12.6 38.6 x 31.1 x 16.8 38.6 x 31.1 x 16.8 38.6 x 31.1 x 16.9
Net/Gross Weight lbs 78 / 84 86 / 93 105 / 115 142 / 153 154 / 165 161 / 172
Refrigerant/Charge oz. R410A / 45.9 R410A / 47.6 R410A / 56.4 R410A / 77.6 R410A / 84.6 R410A / 91.7
Line Set Size (Liquid – Gas) inch 1/4 – 3/8 1/4 – 1/2 1/4 – 5/8 1/4 – 5/8 1/4 – 5/8 1/4 – 5/8
Max. Pipe Length ft 49.2 65.6 82 82 98.4 98.4
Max. Elevation ft 49 49 49 49 49 49
MCA A 9 9 16 20 20 24
MOCP A 15 15 25 30 30 40
Wire Size/# Wires 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded
