Wabban

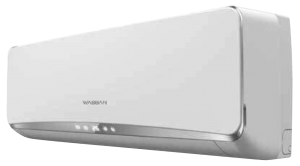

Série Bora / Zone unique
Série Bora / Zone unique
DESCRIPTION
- Affichage à DEL
- Chauffage à -20° C
- Thermostat mural en option
- Rabais disponibles
SPECIFICATION
| MODÈLE | BB09UW3SVDTE | BB12UW3SVETE | BB18UW3SXATE | BB24UW3SBBTE | ||
| Alimentation | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | ||
| Courant nominal refroidissement | A | 3,7 | 5.0 | 7.6 | 10.5 | |
| Courant nominal chauffage | A | 3.9 | 5.0 | 9.0 | 10.4 | |
| Rendement du système | ||||||
| Déshumidification | l/h | 0.9 | 1.18 | 1.98 | 2.4 | |
| Puissance frigorifique (Min-Max) | Btu/h | 9,000 (4,500 – 10,000) | 12,000 (5,500 – 13,500) | 18,000 (6,500 – 19,500) | 24,000 (8,000 – 26,500) | |
| Puissance calorifique (Min-Max) | Btu/h | 10,000 (4,500 – 10,000) | 13,000 (5,500 – 13,500) | 20,000 (6,000 – 21,500) | 24,500 (8,000 – 26,500) | |
| SEER/EER | 16.3 / 10.98 | 16.7 / 10.71 | 17.6 / 10.59 | 17.6 / 10.48 | ||
| HSPF/COP | 9.1 / 3.4 | 9.0 / 3.43 | 10.1 / 2.93 | 9.8 / 3.15 | ||
| Appareil intérieur | BB09UW3SVDTE-I | BB12UW3SVETE-I | BB18UW3SXATE-I | BB24UW3SBBTE-I | ||
| Débit d’air | CFM | 324 | 365 | 589 | 677 | |
| Niveau de pression acoustique | dB(A) | 39 / 36 / 33 / 26 | 40 / 36 / 33 / 26 | 45 / 43 / 38 / 35 | 48 / 45 / 40 / 36 | |
| Dimensions (LxHxP) | inch | 29.3 x 10.6 x 8.4 | 32.1 x 10.6 x 8.4 | 36 x 12.4 x 9.3 | 42.75 x 12.4 x 9.3 | |
| Poids net | lbs | 19 | 20 | 28 | 33 | |
| Appareil extérieur | BB09UW3SVDTE-O | BB12UW3SVETE-O | BB18UW3SXATE-O | BB24UW3SBBTE-O | ||
| Type de compresseur | ROTARY | ROTARY | ROTARY | ROTARY | ||
| Niveau sonore | dB(A) | 54 | 54 | 56 | 58 | |
| Dimensions (LxHxP) | inch | 28.1 x 19 x 9.4 | 28.1 x 19 x 9.4 | 31.9 x 23 x 11 | 33.9 x 25.6 x 12.2 | |
| Poids net | lbs | 55 | 60 | 86 | 110 | |
| Réfrigérant | oz. | R410A | R410A | R410A | R410A | |
| Grosseur du conduit (liquide) | inch | 1/4 | 1/4 | 1/4 | 3/8 | |
| Longueur max. du tuyau | ft | 49.2 | 65.6 | 82 | 82 | |
| Élévation maximale | ft | 49 | 49 | 49 | 49 | |
| MCA | A | 9 | 9 | 16 | 20 | |
| MOCP | A | 15 | 15 | 25 | 30 | |
| Calibre du fil/nombre de fils | 14AWG*4 Stranded, Unshielded | 14AWG*4 Stranded, Unshielded | 14AWG*4 Stranded, Unshielded | 14AWG*4 Stranded, Unshielded | ||
DESCRIPTION
- Affichage à DEL
- Chauffage à -20° C
- Thermostat mural en option
- Rabais disponibles
SPECIFICATION
| MODÈLE | BB09UW3SVDTE | BB12UW3SVETE | BB18UW3SXATE | BB24UW3SBBTE | ||
| Alimentation | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | ||
| Courant nominal refroidissement | A | 3,7 | 5.0 | 7.6 | 10.5 | |
| Courant nominal chauffage | A | 3.9 | 5.0 | 9.0 | 10.4 | |
| Rendement du système | ||||||
| Déshumidification | l/h | 0.9 | 1.18 | 1.98 | 2.4 | |
| Puissance frigorifique (Min-Max) | Btu/h | 9,000 (4,500 – 10,000) | 12,000 (5,500 – 13,500) | 18,000 (6,500 – 19,500) | 24,000 (8,000 – 26,500) | |
| Puissance calorifique (Min-Max) | Btu/h | 10,000 (4,500 – 10,000) | 13,000 (5,500 – 13,500) | 20,000 (6,000 – 21,500) | 24,500 (8,000 – 26,500) | |
| SEER/EER | 16.3 / 10.98 | 16.7 / 10.71 | 17.6 / 10.59 | 17.6 / 10.48 | ||
| HSPF/COP | 9.1 / 3.4 | 9.0 / 3.43 | 10.1 / 2.93 | 9.8 / 3.15 | ||
| Appareil intérieur | BB09UW3SVDTE-I | BB12UW3SVETE-I | BB18UW3SXATE-I | BB24UW3SBBTE-I | ||
| Débit d’air | CFM | 324 | 365 | 589 | 677 | |
| Niveau de pression acoustique | dB(A) | 39 / 36 / 33 / 26 | 40 / 36 / 33 / 26 | 45 / 43 / 38 / 35 | 48 / 45 / 40 / 36 | |
| Dimensions (LxHxP) | inch | 29.3 x 10.6 x 8.4 | 32.1 x 10.6 x 8.4 | 36 x 12.4 x 9.3 | 42.75 x 12.4 x 9.3 | |
| Poids net | lbs | 19 | 20 | 28 | 33 | |
| Appareil extérieur | BB09UW3SVDTE-O | BB12UW3SVETE-O | BB18UW3SXATE-O | BB24UW3SBBTE-O | ||
| Type de compresseur | ROTARY | ROTARY | ROTARY | ROTARY | ||
| Niveau sonore | dB(A) | 54 | 54 | 56 | 58 | |
| Dimensions (LxHxP) | inch | 28.1 x 19 x 9.4 | 28.1 x 19 x 9.4 | 31.9 x 23 x 11 | 33.9 x 25.6 x 12.2 | |
| Poids net | lbs | 55 | 60 | 86 | 110 | |
| Réfrigérant | oz. | R410A | R410A | R410A | R410A | |
| Grosseur du conduit (liquide) | inch | 1/4 | 1/4 | 1/4 | 3/8 | |
| Longueur max. du tuyau | ft | 49.2 | 65.6 | 82 | 82 | |
| Élévation maximale | ft | 49 | 49 | 49 | 49 | |
| MCA | A | 9 | 9 | 16 | 20 | |
| MOCP | A | 15 | 15 | 25 | 30 | |
| Calibre du fil/nombre de fils | 14AWG*4 Stranded, Unshielded | 14AWG*4 Stranded, Unshielded | 14AWG*4 Stranded, Unshielded | 14AWG*4 Stranded, Unshielded | ||
