Wabban

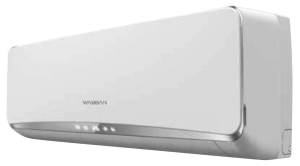

Bora Series / Single Zone

Bora Series / Single Zone

  • LED display
  • Heating down to -20° C
  • Optional wall thermostat
  • Rebates available with almost every utility company in North America

SPECIFICATION


MODEL BB09UW3SVDTE BB12UW3SVETE BB18UW3SXATE BB24UW3SBBTE
Power Supply 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph 208-230V, 60Hz, 1Ph
Rated Current Cooling A 3,7 5.0 7.6 10.5
Rated Current Heating A 3.9 5.0 9.0 10.4
System Performance
Dehumidification l/h 0.9 1.18 1.98 2.4
Cooling Capacity (Min-Max) Btu/h 9,000 (4,500 – 10,000) 12,000 (5,500 – 13,500) 18,000 (6,500 – 19,500) 24,000 (8,000 – 26,500)
Heating Capacity (Min-Max) Btu/h 10,000 (4,500 – 10,000) 13,000 (5,500 – 13,500) 20,000 (6,000 – 21,500) 24,500 (8,000 – 26,500)
SEER/EER 16.3 / 10.98 16.7 / 10.71 17.6 / 10.59 17.6 / 10.48
HSPF/COP 9.1 / 3.4 9.0 / 3.43 10.1 / 2.93 9.8 / 3.15
Indoor Unit BB09UW3SVDTE-I BB12UW3SVETE-I BB18UW3SXATE-I BB24UW3SBBTE-I
Airflow CFM 324 365 589 677
Sound Pressure Level dB(A) 39 / 36 / 33 / 26 40 / 36 / 33 / 26 45 / 43 / 38 / 35 48 / 45 / 40 / 36
Unit Dimension inch 29.3 x 10.6 x 8.4 32.1 x 10.6 x 8.4 36 x 12.4 x 9.3 42.75 x 12.4 x 9.3
Net/Gross Weight lbs 19 20 28 33
Outdoor Units BB09UW3SVDTE-O BB12UW3SVETE-O BB18UW3SXATE-O BB24UW3SBBTE-O
Compressor Type ROTARY ROTARY ROTARY ROTARY
Sound Pressure Level dB(A) 54 54 56 58
Unit Dimension inch 28.1 x 19 x 9.4 28.1 x 19 x 9.4 31.9 x 23 x 11 33.9 x 25.6 x 12.2
Net/Gross Weight lbs 55 60 86 110
Refrigerant/Charge oz. R410A R410A R410A R410A
Line Set Size (Liquid – Gas) inch 1/4 1/4 1/4 3/8
Max. Pipe Length ft 49.2 65.6 82 82
Max. Elevation ft 49 49 49 49
MCA A 9 9 16 20
MOCP A 15 15 25 30
Wire Size/# Wires 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded 14AWG*4 Stranded, Unshielded
